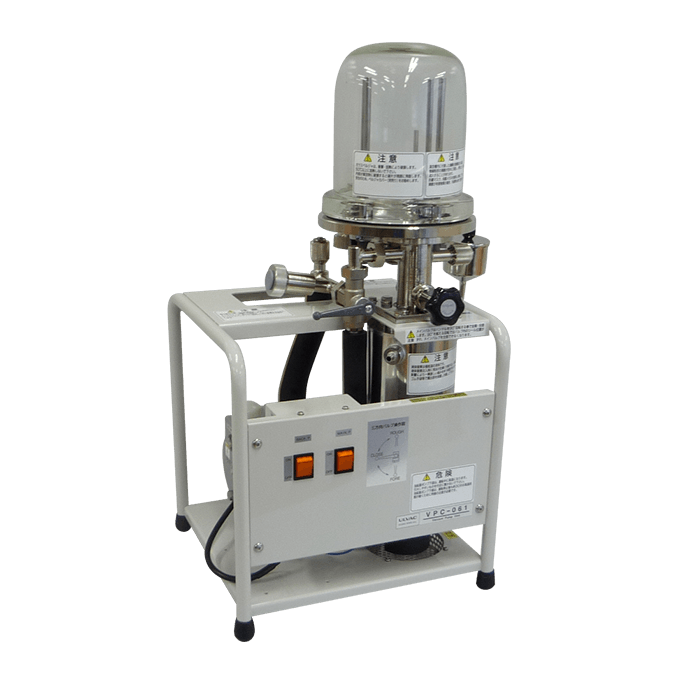

This compact vacuum evaporation system is a resistance heating type and low-cost type, in which the necessary equipment such as main pump, sub pump, valve piping, electric system, pressure measurement port, etc. are compactly stored in a pipe frames. Ideal for experiments such as basic research and the development of small substrate sizes.
